24 Cores OM3 OM4 40G LC to MPO MTP Cassettes for 1U 19Inch MPOs Terminal

Name: 24 Cores OM3 OM4 40G LC to MPO MTP Cassettes for 1U 19Inch MPOs Terminal
Brand: Haiyu Optical
Price: 65.90 USD

Wholesale 24 Cores OM3 OM4 40G LC to MPO MTP Cassettes for 1U 19Inch MPOs Terminal from china suppliers

Place of Origin : Guangdong, China

Brand Name : Haiyu Optical

Model Number : HYG FTB-MPO-LC-24-om3/4

MOQ : 1-9 Sets

Price : $65.90

Certification : ISO9001, CE, ROHS

Name : 24 cores OM3 OM4 40G LC to mpo mtp cassettes

Fiber Type : OM3/OM4

Fiber optic cable quantity : 24 cores

Connector type1 : MPO

Connector type2 : Duplex LC

marerial : 1.3mm sheet metal

Wavelength : 850nm, 1300nm

N.W. : 0.5

Ambient temperature : - 45 °C ~ + 80 °C

Application : Suit for 1U MPO patch panel

Selling Units : Single item

Single package size : 22X20X8 cm

Single gross weight : 1.000 kg

Package Type : carton box

Contact Now

24 Cores OM3 OM4 40G LC to MPO MTP Cassettes for 1U 19Inch MPOs Terminal

Product Description

This MPO/MTP Fiber optic patch panels provide secure transitions between MPO/MTP and LC discrete connector interface. They are used to interface MPO/MTP backbones with LC patching and active equipment connections.

The Pre-populated panel allows repid deployment of high density data center infrastricture as well as improved trouble shooting and reconfiguration during moves, adds and changes. The shallow depth of the Slim Ultra Panel makes it suitable for copper racking systems.

The MPO/MTP Fiber optic patch panels contain factory controlled and tested MPO/MTP -LC fanouts to deliver optical performance and reliability. Low loss MPO/MTP Elite and LC Premium versions are offered featuring significantly improved low insertion losses for demanding low power budget, high speed networks.

Features

Fits 19" wide rack units
Reliability - 100% Tested.Factory terminated and tested
Built-in spool for easy cable management
Constructed of high-quality cold rolled steel sheet

1U patch panel capacity comes up to 144F fully loaded , up to 12 MPO/MTP® standard connectors.

Application

Optical access network (OAN)
Data processing centers/Cable television (CATV)
Local area network (LAN)
Coarse wavelength division
PLC system
FTTH

Packing & Delivery

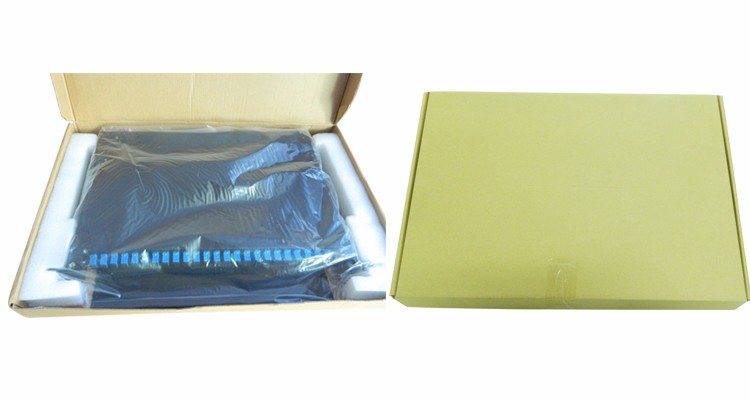

Packing: Fix the panel with foam, each panel packed with a good quality inner box, then packed in carton.
Cutomized packing is accepted.
Delivery time: 3-5 days after receive payment.
Support Express (Fedex, UPS, DHL, TNT, DPEX etc) , Air and Sea transportation.
Fast and Save.

Our Company

Certifications

Haiyu optical certificate.

Haiyu optical has award ISO9001, CE and Rohs certificate for our products.

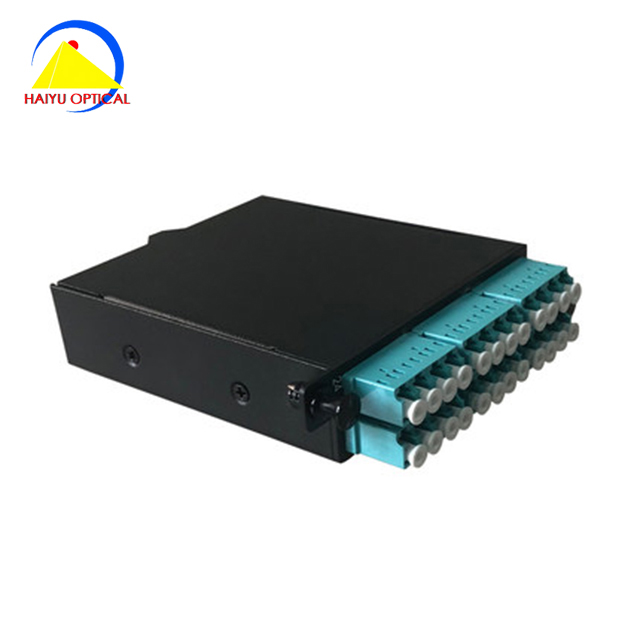

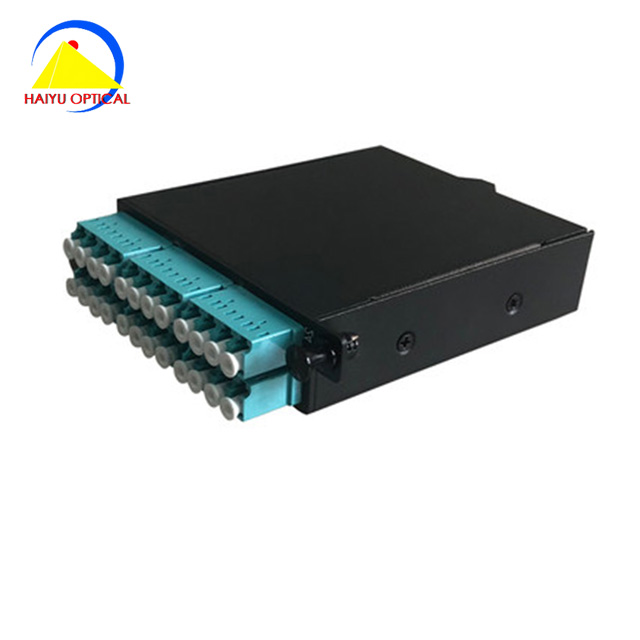

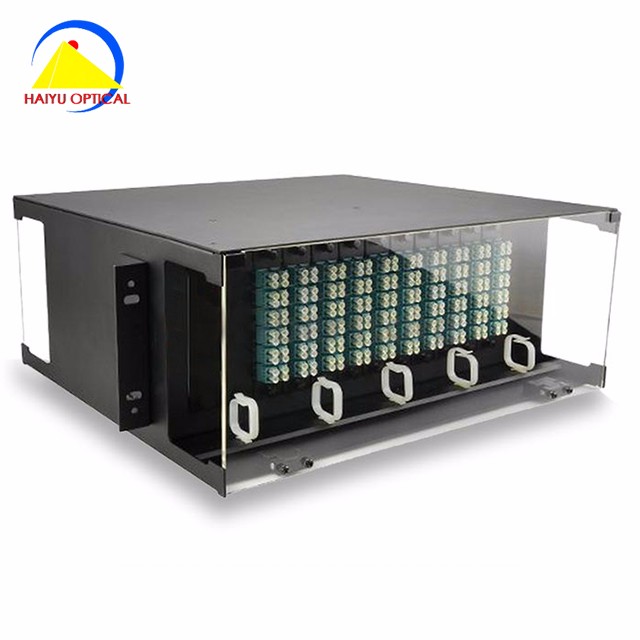

24 Cores OM3 OM4 40G LC to MPO MTP Cassettes for 1U 19Inch MPOs Terminal Images
