Plenum OFNP MPO Fiber Optic Patch Cord Single Mode OS1 OS2 OM1 OM2 OM3 OM4 OM5

Name: Plenum OFNP MPO Fiber Optic Patch Cord Single Mode OS1 OS2 OM1 OM2 OM3 OM4 OM5
Brand: Haiyu Optical
Price: 1 USD

Wholesale Plenum OFNP MPO Fiber Optic Patch Cord Single Mode OS1 OS2 OM1 OM2 OM3 OM4 OM5 from china suppliers

Brand Name : Haiyu Optical

Model Number : HYG-MPO/MTP-OM3-12F-XXM

Certification : Rohs,CE, ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per day

Delivery Time : 2-3 working days

Packaging Details : polybag+carton or customized

Product name : MPO Plenum Fiber Optic Patch Cord

Length : 1m, 2m,5m,10m or custom

Color : Yellow, Orange, Aqua, Violet

Fiber type : Singlemode OS1 OS2 OM1 OM2 OM3 OM4 OM5

Fiber count : 8/12/16/24 cores

Cable Rating : Plenum Rated OFNP

Contact Now

Singlemode OS1 OS2 OM1 OM2 OM3 OM4 OM5 Plenum MPO Fiber Optic Patch Cord

Plenum MPO Fiber Optic Patch Cord description:

MPO Plenum Fiber Optic Patch Cords are the most economic multifiber cables. These cables can combine up to 144 fibers in a single MPO cable assembly. It greatly reduces the overall cost and setup time for even the most complex fiber optic networks. These MPO cables feature Plenum rated insulation. Which is designed to be more fire retardant than standard cables. Which therefore will emit sufficiently less smoke than ordinary fiber optic cables.

Haiyu’s Plenum MPO Fiber Optic patch cords are designed to meet building regulations for fire resistant cabling. Because of this, these cables are the ideal choice to be installed in the inner walls and ceilings of buildings rather than standard cables. Plenum rated cables are designed to be fire resistant, as a result produce far less smoke in contrast to other cables. Need cables that require floor or outside installations? Riser or armored jackets may be a better solution. Haiyu Optical offers a full line of MPO patch cords in riser and armored jackets.

Plenum MPO Fiber Optic Patch Cord specification:

Parameters		Min.	Typical	Max.	Unit.
Operating Wavelength	Single Mode	1310		1620	nm
Operating Wavelength	Multi-mode	850		1310	nm
MPO Insertion Loss	Single Mode			0.6	dB
	Single Mode Low Loss		0.3	0.35
	Multi-mode			0.75
Single Fiber Insertion Loss (Fan-out side)	Single Mode			0.2	dB
	Single Mode Low Loss			0.3
	Multi-mode			0.3
Return Loss	Single Mode	50			dB
	Single Mode Low Loss	60
	Multi-mode	30
Operating Temperature		- 20		+ 70	°C
Fiber Type		SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2
Cable Jacket Type	Ribbon / Fan-out	PVC
Cable Jacket Color	Yellow	G652 and G657 Single mode fiber
	Orange	OM2 Multi-mode fiber
	Aqua	OM3 fiber
Flammability Rating		IEC-60332-1, IEC-61034, IEC-60754-1 and 2

Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.

Plenum MPO Fiber Optic Patch Cord features:

Improves and simplifies fiber routing
Decreases fiber management space
OEM or customized for special applications
Low insertion loss and reflectance

Plenum MPO Fiber Optic Patch Cord Applications:

Optical System Access Network
Telecommunications networks
Broadband/CATV networks
Data communications networks, including high-bandwidth equipment

Plenum OFNP MPO Fiber Optic Patch Cord Single Mode OS1 OS2 OM1 OM2 OM3 OM4 OM5

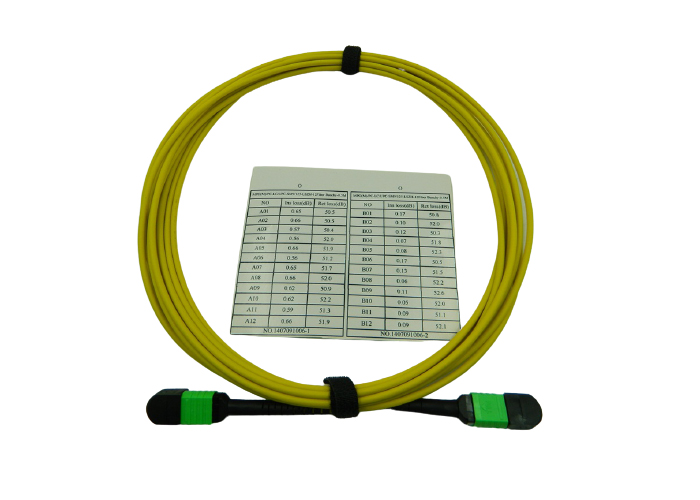

Plenum MPO Fiber Optic Patch Cord pictures:

Plenum OFNP MPO Fiber Optic Patch Cord Single Mode OS1 OS2 OM1 OM2 OM3 OM4 OM5
